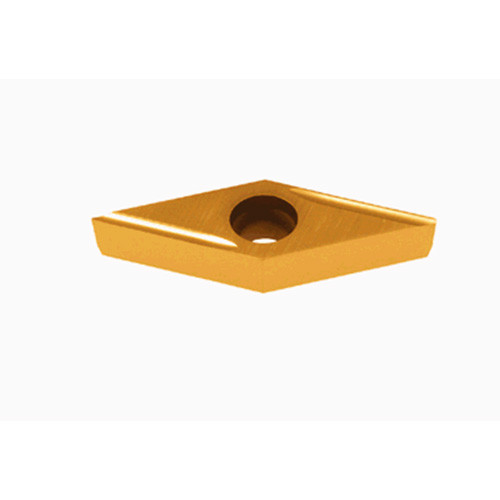

VBGT110300FL-J10 SH725
Positive 5 deg relief angle, G class, 35 deg rhombic insert for finishing to medium cutting
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Min D.O.C. | 0.1 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 5 mm |
| Corner Radius (RE) | 0.03 mm | Min. Turning Feed (ft(min)) | 0.01 mm/rev |
| Cutting Edge Length (L) | 11.2 mm | Max. Turning Feed (ft(max)) | 0.1 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | J10 |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | SH725 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.8 mm | Cutting Edge Effective Length (LE) | 10.9 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive 5 deg relief angle, G class, 35 deg rhombic insert for finishing to medium cutting | FamilyName | VBGTR/L-J10 |
| Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0510
Name
Turning Indexable Inserts
FamilyName
VBGTR/L-J10
BrandName
Tungaloy
