| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.1 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 7.94 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | FT-TS300 |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | TS300 | Cutting Edge Effective Length (LE) | 11.27 mm |
| Tool Type | Turn Negative Inserts | Unit | M |
Product Features

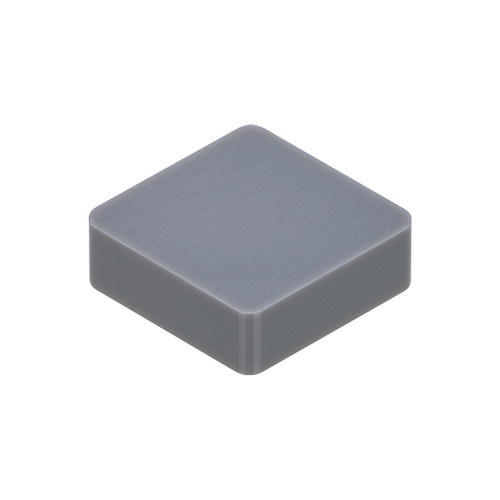

| Family Description | Negative relief ang., G class, 80deg rhombic ceramic insert without chipbreaker for machining high temperature alloy | FamilyName | CNGN-E/T1 |
| Remarks | The last letter of designation means types of cutting edge preparations as below. E: Low cutting force type T1: Strong cutting edge type | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
CNGN-E/T1
BrandName
Tungaloy
