| Applicable Material | | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 2 mm |
| Application | | Inserts | | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Corner Radius (RE) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Cutting Edge Length (L) | 9.53 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 7.94 mm | Chip Breaker Type | FT-TS200 |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | TS200 | Cutting Edge Effective Length (LE) | 4.76 mm |
| Tool Type | Turn Negative Inserts | Unit | M |
| Min D.O.C. | 0.1 mm |
Product Features
| Family Description | Positive relief ang., round ceramic insert without chipbreaker for machining high temperature alloy | FamilyName | RCGX-E/T1 |

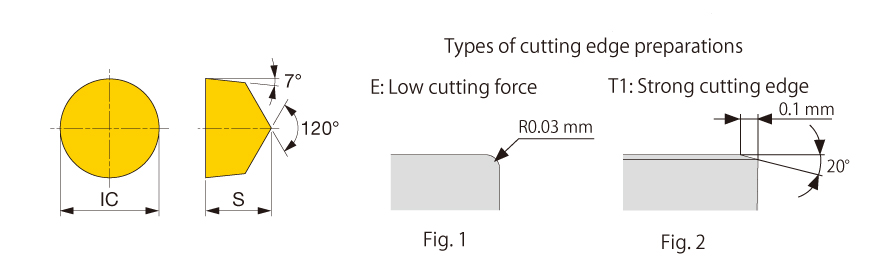

| Remarks | The last letter of designation means types of cutting edge preparations as below. E: Low cutting force type T1: Strong cutting edge type | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
RCGX-E/T1
BrandName
Tungaloy
