TEBRF140T4-26C14M83 AH750

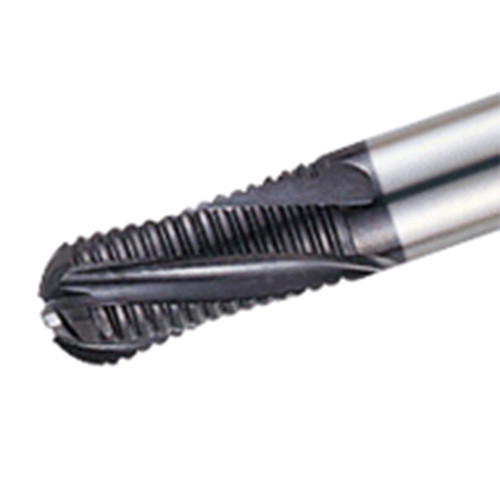

3 or 4 flute ball nose roughing endmill, 20 deg helix angle, long edge type, for hardened steel up to 55 HRC
| Cutting Diameter (DC) | 14 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 26 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 83 mm | Corner Radius (RE) | 7 mm |
| Cutting Edge Material | Carbide | Grade | AH750 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 20 Degrees | Unit | M |
Product Features
| Family Description | 3 or 4 flute ball nose roughing endmill, 20 deg helix angle, long edge type, for hardened steel up to 55 HRC | FamilyName | TEBRF-T3/4 |
| COO | CHINA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
TEBRF-T3/4
BrandName
Tungaloy
