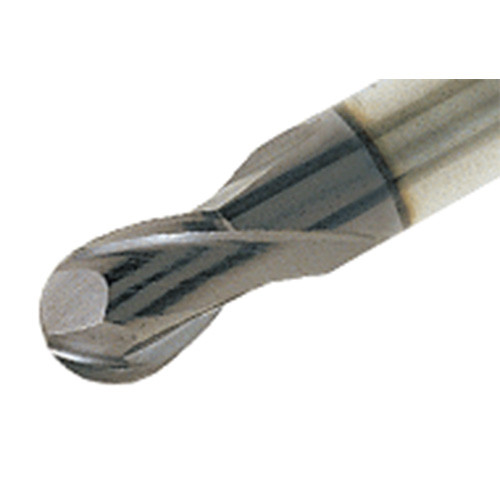

TEB100A2-13C10-72 AH750
2 flute ball nose endmill, 30 deg helix angle, short type
| Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 13 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 72 mm | Corner Radius (RE) | 5 mm |
| Cutting Edge Material | Carbide | Grade | AH750 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Unit | M |
Product Features
| Family Description | 2 flute ball nose endmill, 30 deg helix angle, short type | FamilyName | TEB-A2 (short length) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0770
Name
Ballnose End Mills
FamilyName
TEB-A2 (short length)
BrandName
Tungaloy
