TDX185F25-2

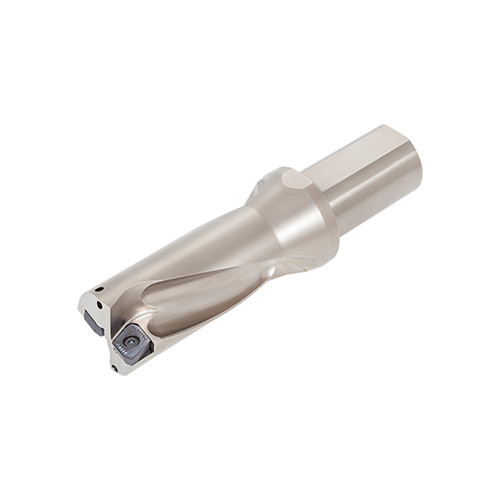

TungDrillTwisted Indexable insert drills, L/D=2, Flat cotter

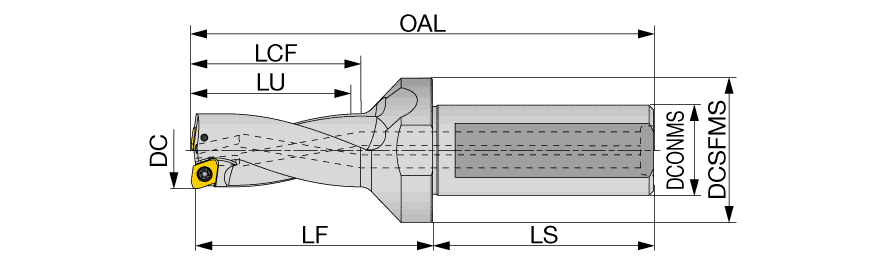

| Cutting Diameter (DC) | 18.5 mm | Cutting Diameter Minimum (DCN) | 18.5 mm |
| Usable Length (LU) | 37.5 mm | Cutting Diameter Maximum (DCX) | 18.5 mm |
| Application | | General Drilling | | Flange Diameter (DF) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 0.49 mm |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Shank Length (LS) | 54 mm | Master Insert Identification (MIID) | XPMT06X308R-DJ |
| Length Chip Flute (LCF) | 40.5 mm | Body Material | Steel |
| Functional Length (LF) | 57 mm | Unit | M |
| Overall Length (OAL) | 111.5 mm |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills, L/D=2, Flat cotter | COO | JAPAN |
Shipping Info
Weight per item
0.3580
