TRLGCH24.00X1650-24

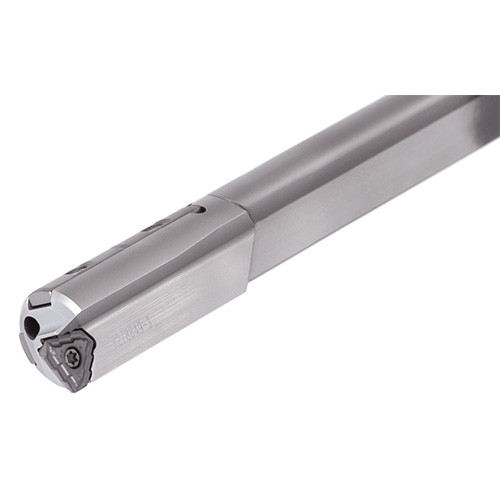

Drill body for gun drill machine. For drilling cross holes.

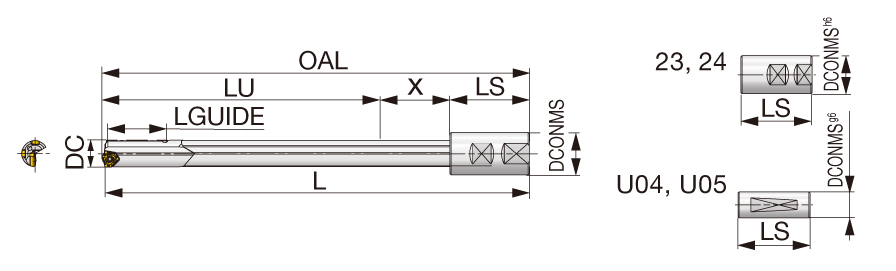

| Cutting Diameter (DC) | 24 mm | Cutting Diameter Minimum (DCN) | 24 mm |
| Usable Length (LU) | 1557.4 mm | Cutting Diameter Maximum (DCX) | 24 mm |
| Application | | Gundrill | | Point Length (PL) | 3.4 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Tool Type | Deep Hole / Gun Drill | Master Insert Identification (MIID) | TOHT11... |
| Shank Length (LS) | 60 mm | Body Material | Steel |
| Functional Length (LF) | 1650 mm | Unit | M |
| Overall Length (OAL) | 1653.4 mm |
Product Features
| Family Description | Drill body for gun drill machine. For drilling cross holes. | COO | JAPAN |

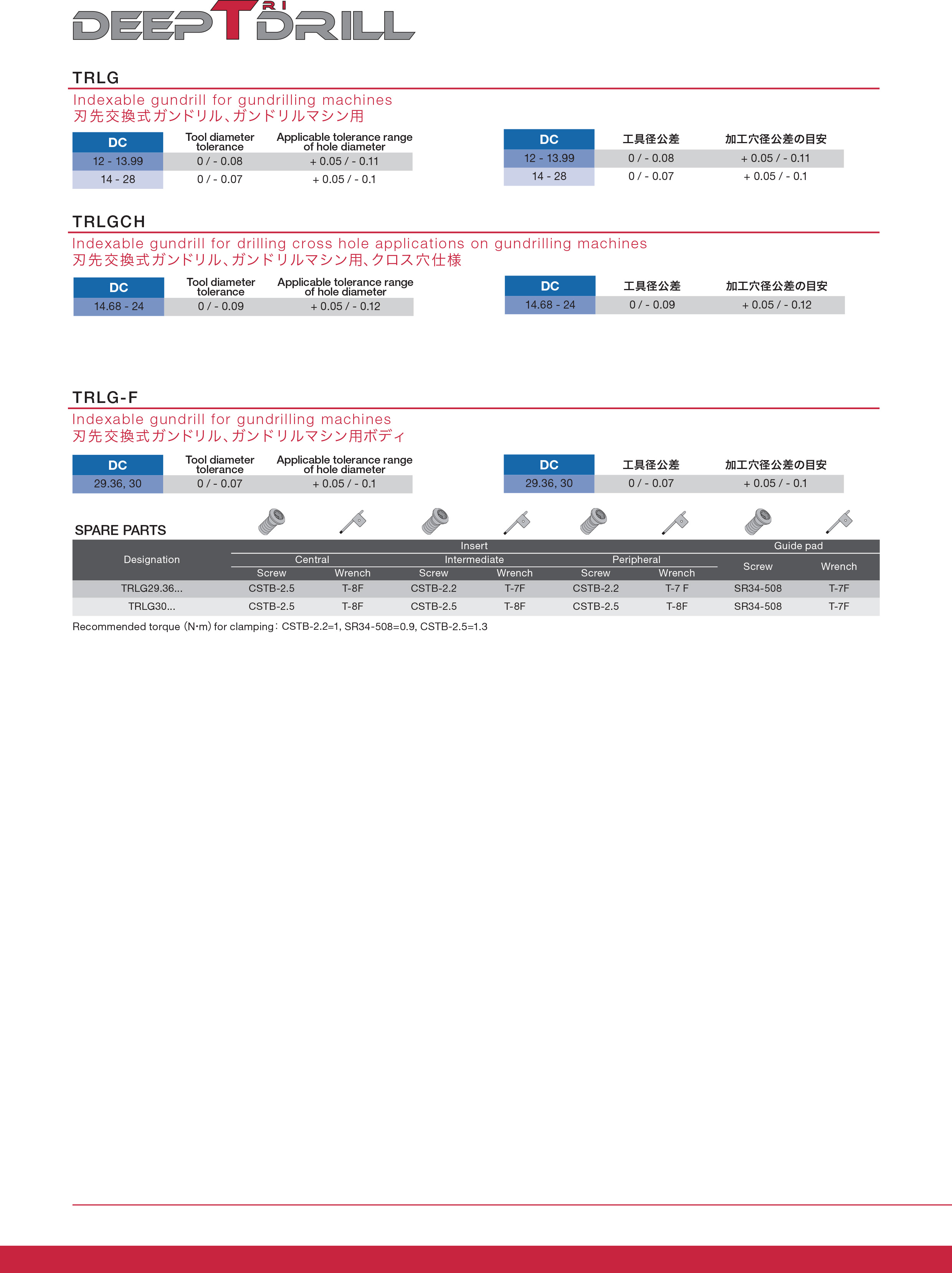

| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the "More Info". |
