UTT33E-XXX.XX
Single Tube Trepanning Drills with Outer 4 Start Thread connection and Cartridges, dia=100 - 328mm. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

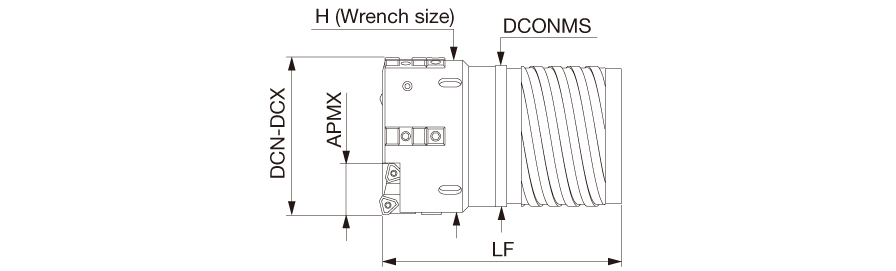

| Application | | BTA system | | Cutting Diameter Maximum (DCX) | 279.99 mm |
| Connection Diameter Machine Side (DCONMS) | 256 mm | Measurement Type | Metric |
| Functional Length (LF) | 304 mm | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 268 mm | Unit | M |
Product Features
| Family Description | Single Tube Trepanning Drills with Outer 4 Start Thread connection and Cartridges, dia=100 - 328mm. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | JAPAN |
| Remarks | These products are made to order on request. |
Shipping Info
Weight per item
0.0000
