MCTR16.00XM25A-25

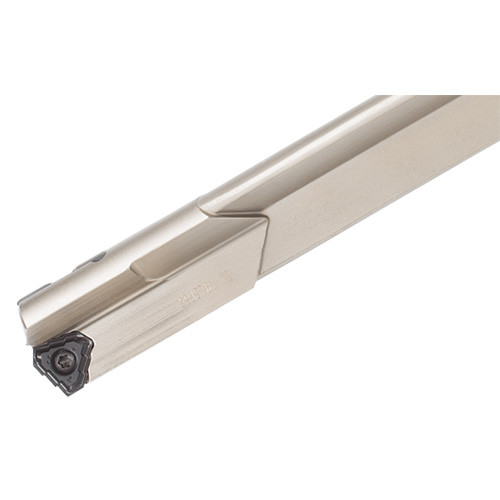

Drill body for lathes and machining centers, L/D = 25

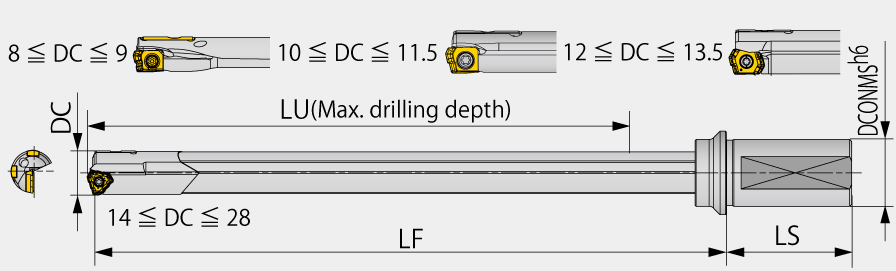

| Cutting Diameter (DC) | 16 mm | Cutting Diameter Minimum (DCN) | 16 mm |
| Usable Length (LU) | 427.2 mm | Cutting Diameter Maximum (DCX) | 16 mm |
| Application | | General Drilling | | Point Length (PL) | 2.2 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Shank Length (LS) | 56 mm | Master Insert Identification (MIID) | TOHT080305R-NDJ |
| Functional Length (LF) | 464 mm | Body Material | Steel |
| Overall Length (OAL) | 522.2 mm | Unit | M |
Product Features
| Family Description | Drill body for lathes and machining centers, L/D = 25 | COO | JAPAN |

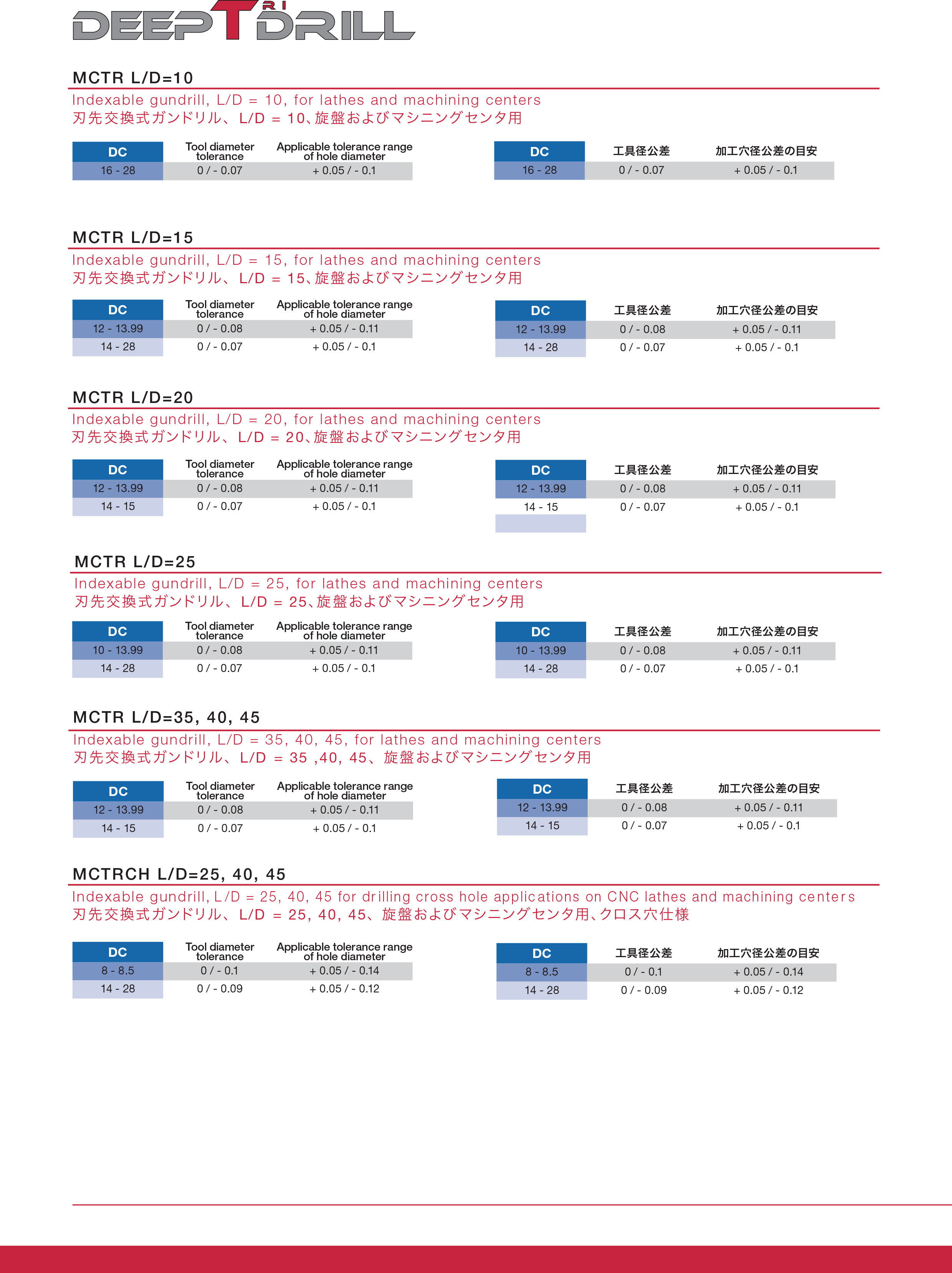

| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the More Info. |
Shipping Info
Weight per item
0.6740
