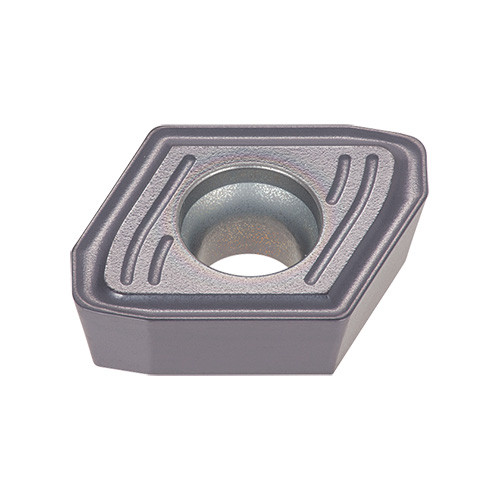

XPMT050204R-DW AH6030
TungDrill insert with DW chipbreaker for high feed drilling of steel

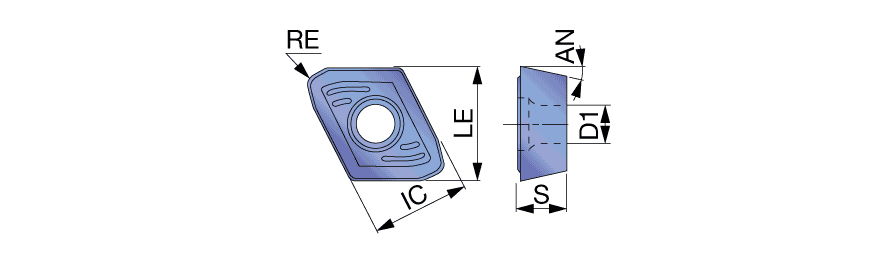

| Cutting Edge Length (L) | 5.2 mm | Application | | General Drilling | |
| Insert Width (W1) | 5.4 mm | Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 2.38 mm | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 5.2 mm | Tool Type | Indexable drilling inserts |
| Corner Radius (RE) | 0.4 mm | Measurement Type | Metric |
| Fixing Hole Diameter (D1) | 2.3 mm | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | AH6030 |
Product Features
| Family Description | TungDrill insert with DW chipbreaker for high feed drilling of steel | COO | JAPAN |
Shipping Info
Weight per item
0.0180
