VBE0312L20-BGAU02S05 KS15F
Ball, 2 flutes, roughing - finishing, for non-ferrous metal, helix cutting edge

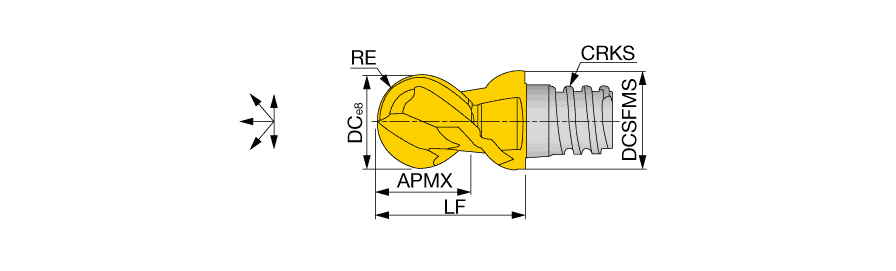

| Application | | Profile Milling | | Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 0.312″ | Grade | KS15F |
| Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | Uncoated |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.156″ | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0.312″ | Tool Type | Solid ball nose |
| Depth of Cut Maximum (APMX) | 0.2″ | Body Material | Carbide |
| Functional Length (LF) | 0.39″ | Unit | I |
Product Features
| Family Description | Ball, 2 flutes, roughing - finishing, for non-ferrous metal, helix cutting edge | FamilyName | VBE-BGA |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Solid End Mill Heads
FamilyName
VBE-BGA
BrandName
Tungaloy
