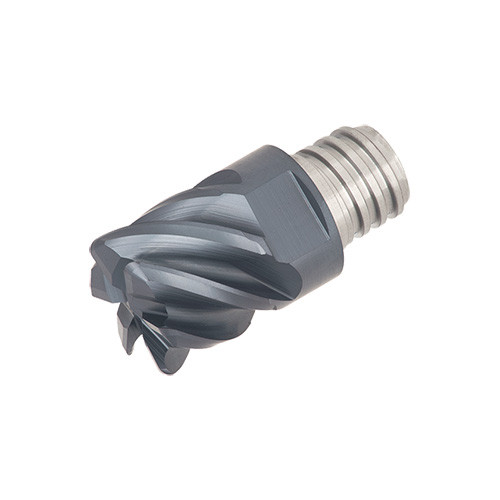

VEE120L09.0C10-06S08 AH750
Square, 6 flutes, roughing - finishing, small width of cut
| Application | | Shoulder Milling | | Coating | TiAlN |

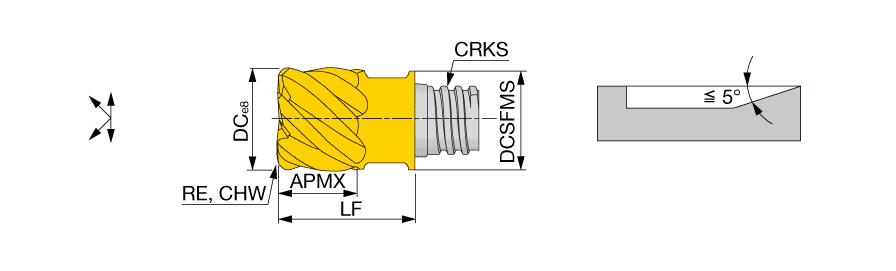

| Cutting Diameter (DC) | 12 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Cutting Diameter Maximum (DCX) | 12 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 9 mm | Tool Type | Solid carbide non center cutting endmills 90 |
| Functional Length (LF) | 16.5 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 50 Degrees | Unit | M |
| Grade | AH750 |
Product Features
| Family Description | Square, 6 flutes, roughing - finishing, small width of cut | FamilyName | VED/VEE-06 |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0660
Name
Solid End Mill Heads
FamilyName
VED/VEE-06
BrandName
Tungaloy
