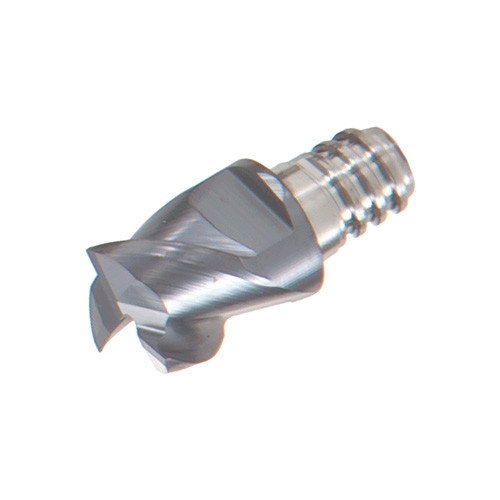

VEE157L08.0R03-03S10 AH715
Square, 3 flutes, roughing - finishing, general, for key way
| Application | | Shoulder Milling | | Grade | AH715 |

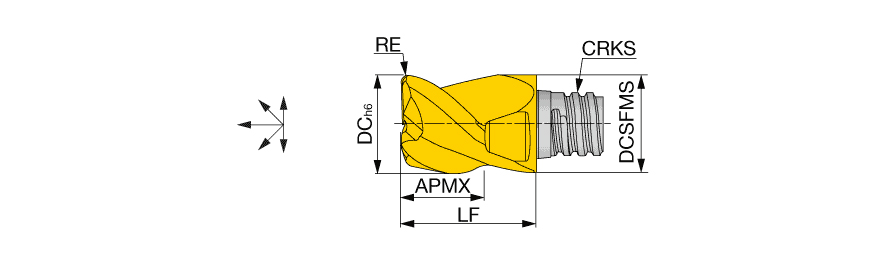

| Cutting Diameter (DC) | 15.7 mm | Coating | TiAlSiCrN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Corner Radius (RE) | 0.3 mm | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Cutting Diameter Maximum (DCX) | 15.7 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 8 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Functional Length (LF) | 20.5 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Unit | M |
Product Features
| Family Description | Square, 3 flutes, roughing - finishing, general, for key way | FamilyName | VEE-03 |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Solid End Mill Heads
FamilyName
VEE-03
BrandName
Tungaloy
