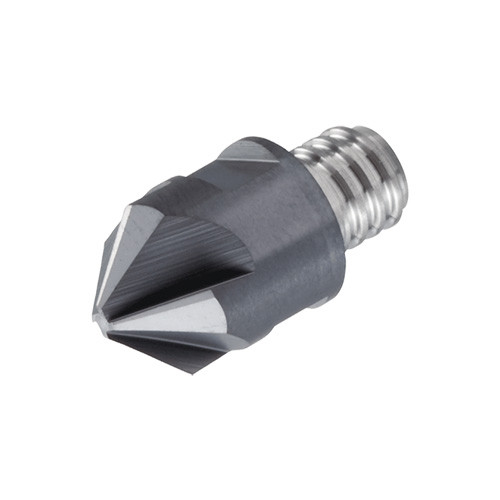

VCA100L04.0A45-04S06 AH715
Chamfering, 4, 6 flutes, chamfering angle: 45 degree

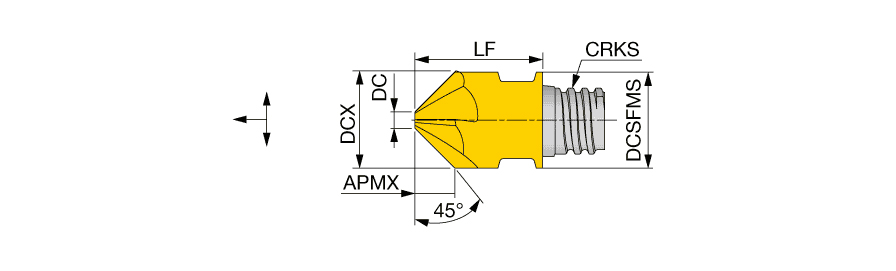

| Application | | Multi Functional tools | | Grade | AH715 |
| Cutting Diameter (DC) | 1.95 mm | Coating | TiAlSiCrN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 10 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Type | Solid chamfering endmills |
| Functional Length (LF) | 13 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 0 Degrees | Unit | M |
Product Features
| Family Description | Chamfering, 4, 6 flutes, chamfering angle: 45 degree | FamilyName | VCA-04,06 |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Solid End Mill Heads
FamilyName
VCA-04,06
BrandName
Tungaloy
