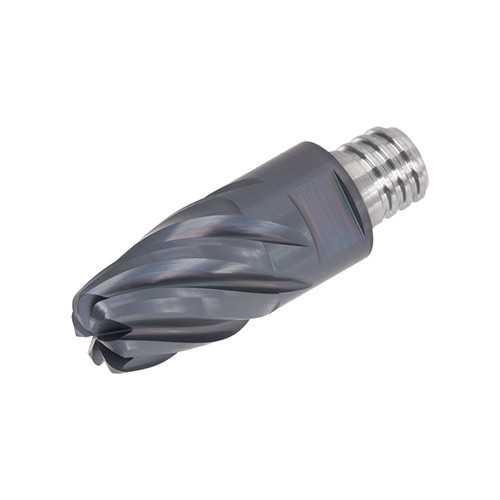

VBN100L13.0R450-6S06 AH715
Bull nose, 6 flutes, semi finishing - finishing, high productive profiling

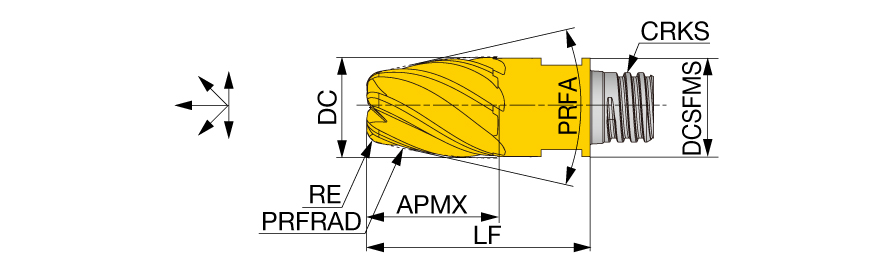

| Application | | Profile Milling | | Flute Helix Angle (FHA) | 35 Degrees |
| Cutting Diameter (DC) | 10 mm | Grade | AH715 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlSiCrN |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 82.5 Degrees |
| Corner Radius (RE) | 1.5 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 10 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 13 mm | Body Material | Carbide |
| Functional Length (LF) | 22 mm | Unit | M |
Product Features
| Family Description | Bull nose, 6 flutes, semi finishing - finishing, high productive profiling | FamilyName | VBN |
| Remarks | Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Solid End Mill Heads
FamilyName
VBN
BrandName
Tungaloy
