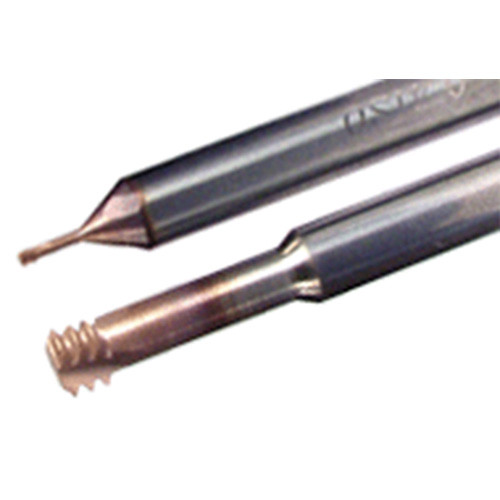

MTECS1615E432.5ISO AH725
Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread.

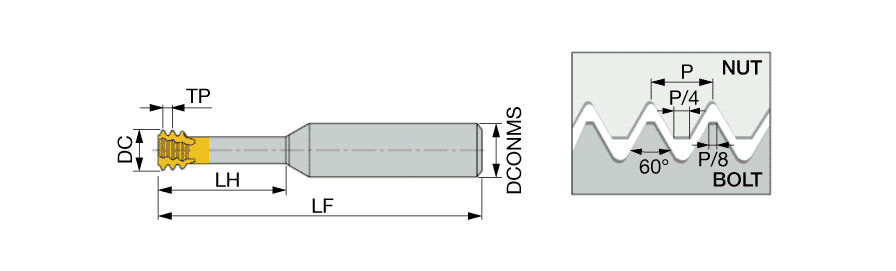

| Connection Diameter Machine Side (DCONMS) | 16 mm | Threads per Inch Maximum (TPIX) | 10.2 |
| Cutting Diameter (DC) | 15 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 100 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Grade | AH725 |
| Coating | TiAlN | Tool Type | Solid carbide thread mills |
| Application | | Int. Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
| Threads per Inch Minimum (TPIN) | 10.2 |
Product Features
| Family Description | Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread. | COO | ISRAEL |
Shipping Info
Weight per item
0.2600
