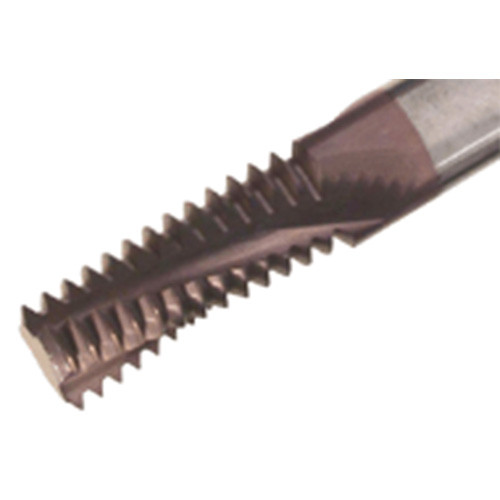

MTECE1010D1624UN AH725
Solid carbide threading endmills with UN form for external threading.
| Connection Diameter Machine Side (DCONMS) | 10 mm | Threads per Inch Maximum (TPIX) | 24 |
| Cutting Diameter (DC) | 10 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 73 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Grade | AH725 |
| Coating | TiAlN | Tool Type | Solid carbide thread mills |
| Application | | Ext. Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
| Threads per Inch Minimum (TPIN) | 24 |
Product Features
| Family Description | Solid carbide threading endmills with UN form for external threading. | COO | ISRAEL |
Shipping Info
Weight per item
0.0000
