MTEC06022C50.5ISO AH725

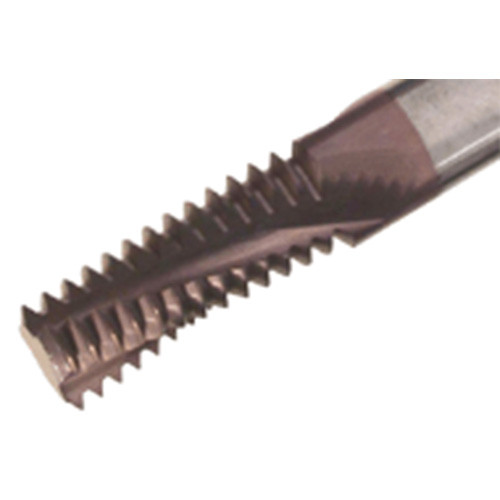

Solid carbide internal threading endmills used for ISO thread profile.

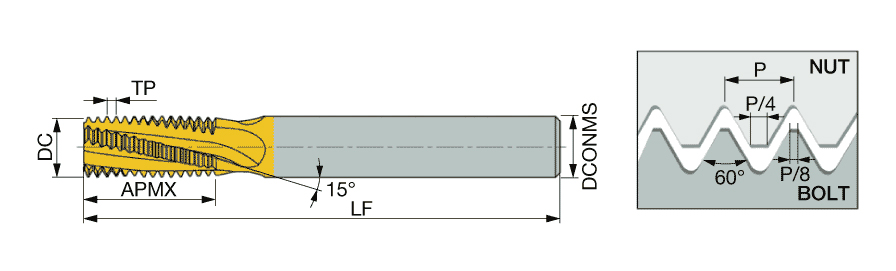

| Connection Diameter Machine Side (DCONMS) | 6 mm | Threads per Inch Maximum (TPIX) | 50.8 |
| Cutting Diameter (DC) | 2.2 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 58 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | AH725 |
| Coating | TiAlN | Tool Type | Solid carbide thread mills |
| Application | | Int. Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
| Threads per Inch Minimum (TPIN) | 50.8 |
Product Features
| Family Description | Solid carbide internal threading endmills used for ISO thread profile. | COO | ISRAEL |
