BTU-082 XX.XX

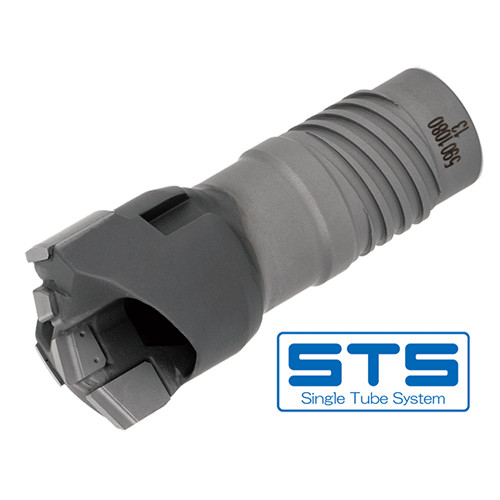

Single Tube Drills with Outer 4 Start Thread connection and Brazed Tips, dia=15.60 - 65mm. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

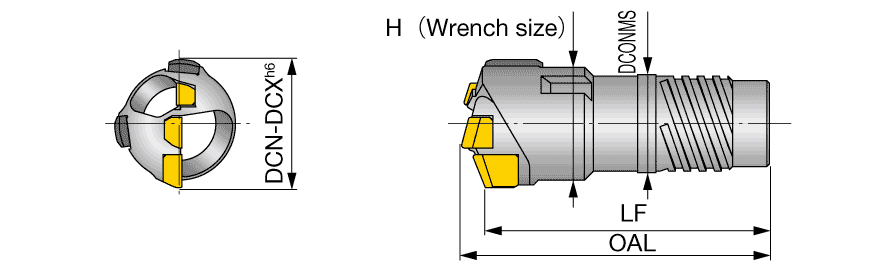

| Application | | BTA system | | Cutting Diameter Minimum (DCN) | 37.31 mm |
| Measurement Type | Metric | Connection Diameter Machine Side (DCONMS) | 30 mm |
| Overall Length (OAL) | 73.5 mm | Body Material | Carbide |
| Cutting Diameter Maximum (DCX) | 38.4 mm | Unit | M |
Product Features
| Family Description | Single Tube Drills with Outer 4 Start Thread connection and Brazed Tips, dia=15.60 - 65mm. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | JAPAN |
| Remarks | These products are made to order on request. |
Shipping Info
Weight per item
0.0000
