TEC030B3-04W06-50 AH725

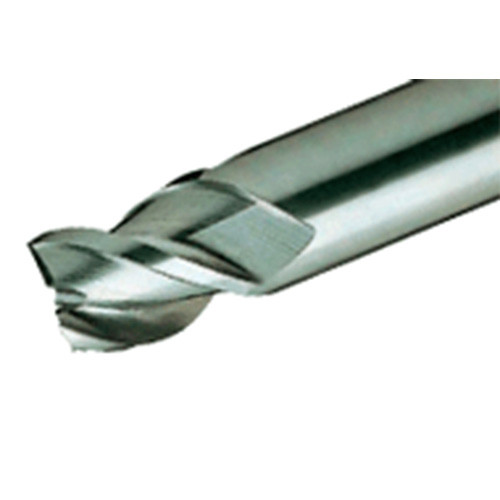

3 flute endmill, 45 deg helix angle, short type

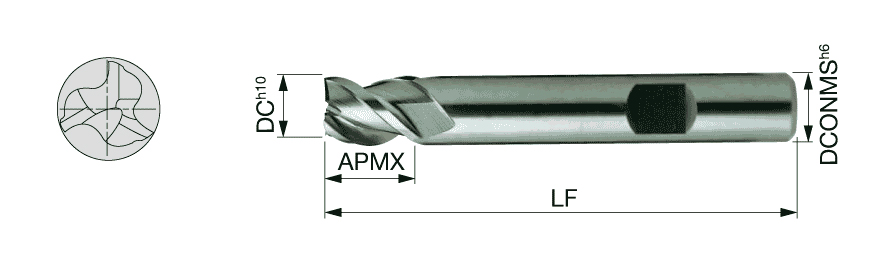

| Cutting Diameter (DC) | 3 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 4 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 50 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Head Length (LH) | 6 mm |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Shank Type | Weldon | Unit | M |
Product Features
| Family Description | 3 flute endmill, 45 deg helix angle, short type | FamilyName | TEC-B3 (short length) |
| COO | CHINA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0210
Name
Square & Corner Radius End Mills
FamilyName
TEC-B3 (short length)
BrandName
Tungaloy
