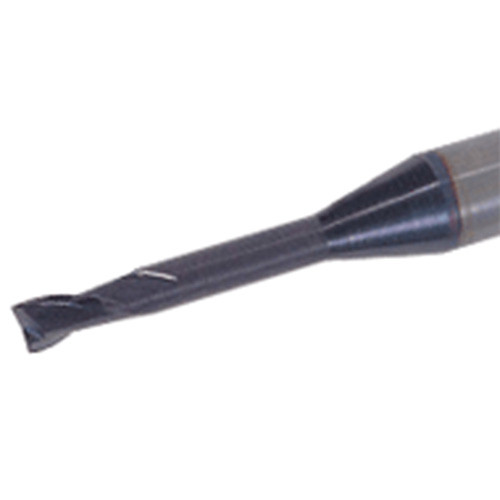

TEC004A2-006/04C4M45 AH750
2 flute rib processing endmill, 30 deg helix angle, for hardened steel up to 55 HRC

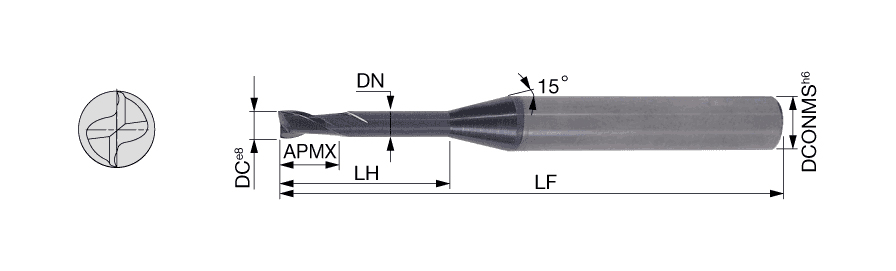

| Cutting Diameter (DC) | 0.4 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.6 mm | Grade | AH750 |
| Overall Length (OAL) | 45 mm | Neck Diameter (DN) | 0.37 mm |
| Cutting Edge Material | Carbide | Head Length (LH) | 4 mm |
| Coating | TiAlN | Neck Length (LN) | 4 mm |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square | Unit | M |
Product Features
| Family Description | 2 flute rib processing endmill, 30 deg helix angle, for hardened steel up to 55 HRC | FamilyName | TEC-A2-RIB |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
TEC-A2-RIB
BrandName
Tungaloy
