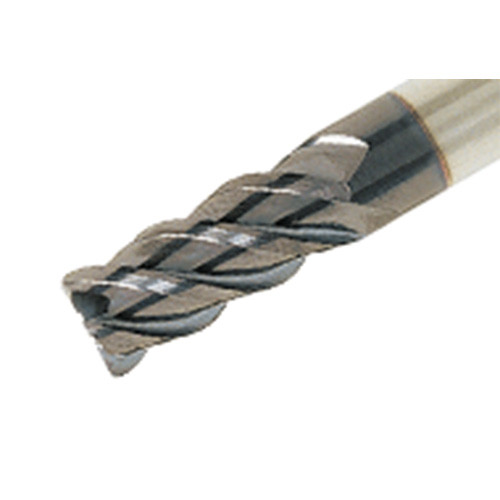

TEC060B4-16C06R1-57 AH725
4 flute radius endmill, 45 deg helix angle

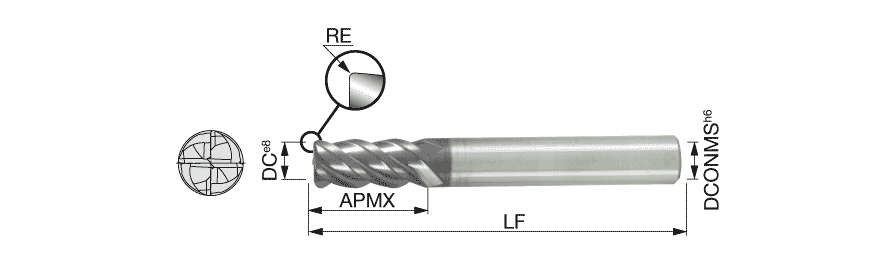

| Cutting Diameter (DC) | 6 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 16 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide | Grade | AH725 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | 4 flute radius endmill, 45 deg helix angle | FamilyName | TEC-B4-R |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0250
Name
Square & Corner Radius End Mills
FamilyName
TEC-B4-R
BrandName
Tungaloy
