C6TLA15M063R03L100

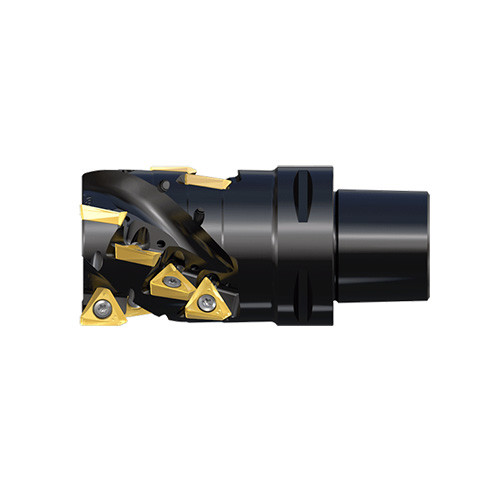

TungTri square shoulder mills for long depth of cut, tool dia. 63 & 80

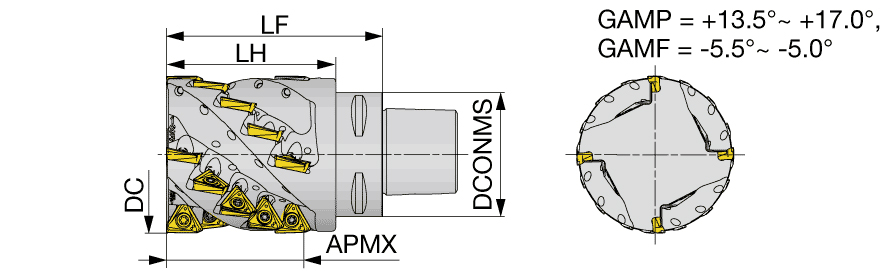

| Application | | Face contact interface | Shoulder Milling | | Master Insert Identification (MIID) | TOMT1506** |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 12 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 55 mm | Body Material | Steel |
| Cutting Diameter (DC) | 63 mm | Tool Type | 90 Extended flute shell mill |
| Overall Length (OAL) | 100 mm | Unit | M |
Product Features
| Family Description | TungTri square shoulder mills for long depth of cut, tool dia. 63 & 80 | FamilyName | C-TLA |
| Remarks | Applicable for 7 MPa coolant | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Shell Mills
FamilyName
C-TLA
BrandName
Tungaloy
