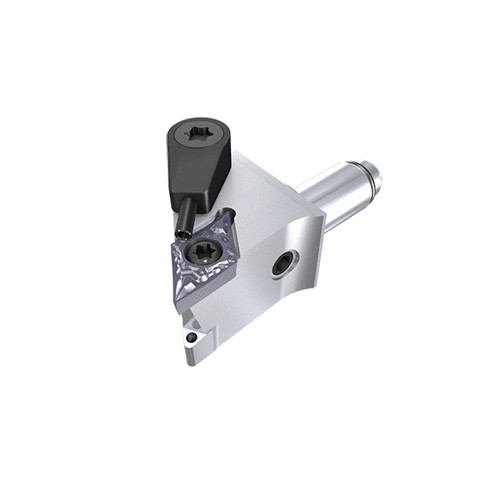

QC10-JSDJ2CR07-CHP
Modular head without offset for ISO 55 deg rhombic inserts, with high pressure coolant capability

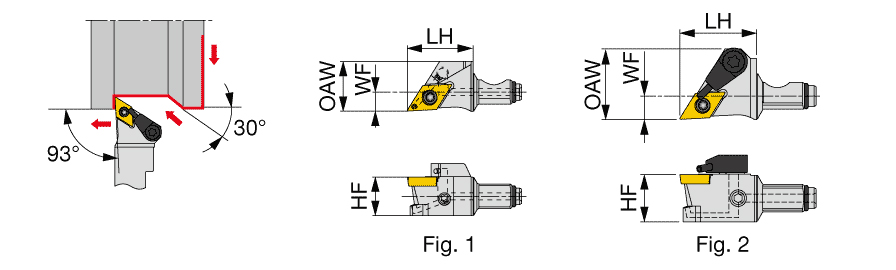

| Shank Height (H) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 12 mm | Master Insert Identification (MIID) | DCGT070202 |
| Overall Length (OAL) | 29.6 mm | Application | | For Miniature machining | |
| Functional Length (LF) | 17.4 mm | Body Material | Steel |
| Head Length (LH) | 17 mm | Measurement Type | Metric |
| Functional Width (WF) | 5 mm | Unit | M |
Product Features
| Family Description | Modular head without offset for ISO 55 deg rhombic inserts, with high pressure coolant capability | FamilyName | QC-JSDJ2CR-CHP |
| Remarks | Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
QC-JSDJ2CR-CHP
BrandName
Tungaloy
