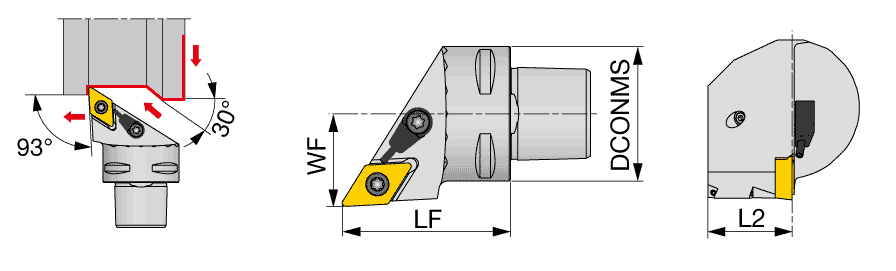

| Overall Length (OAL) | 59 mm | Application | | Face contact interface | For 55deg Rhombic insert | |
| Functional Length (LF) | 40 mm | Body Material | Steel |
| Functional Width (WF) | 22 mm | Tool Type | Tapered Shank Turning Tools |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | DCGT11T308 |
Product Features

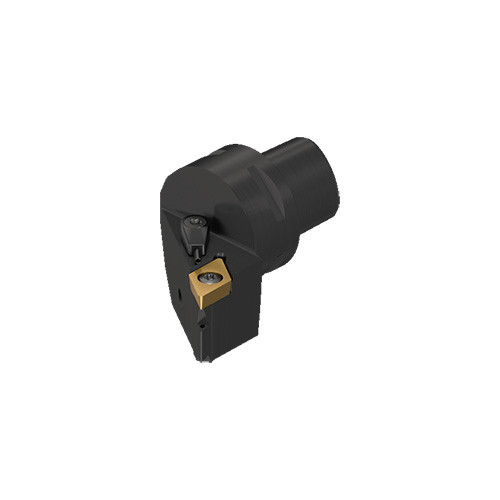

| Family Description | TungCap Screw-on clamp toolholder with 93 deg approach angle, for positive 55 deg rhombic inserts, with high pressure coolant capability | FamilyName | C-SDJCR/L-CHP |
| Remarks | Applicable for 14 MPa coolant Cannot be used for boring | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
C-SDJCR/L-CHP
BrandName
Tungaloy
