TLFNR3232P16
Screw-on clamp toolholder with tangential insert for roughing operation with 93deg approach angle

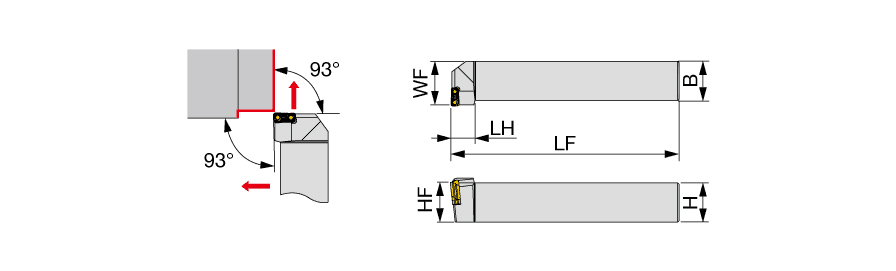

| Shank Height (H) | 32 mm | Application | | For Heavy Turning | |
| Shank Width (B) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 170 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 170 mm | Body Material | Steel |
| Head Length (LH) | 20 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 37 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | LNMX160608L |
Product Features
| Family Description | Screw-on clamp toolholder with tangential insert for roughing operation with 93deg approach angle | FamilyName | TLFNR/L |
| Remarks | The right hand insert (R) is used for the left hand toolholders (TLFNL** type), and the left hand insert (L) is used for the right hand toolholders (TLFNR** type). | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
1.3800
Name
General Indexable Turning Tools
FamilyName
TLFNR/L
BrandName
Tungaloy
