ATGNL2525M16-A

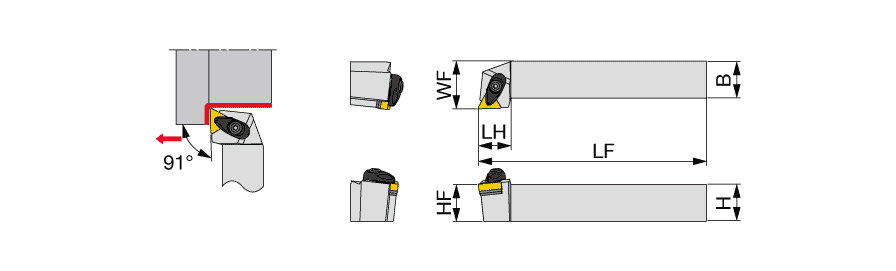

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | TNMG160408 |
| Shank Width (B) | 25 mm | Application | | For Triangular insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 22 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features

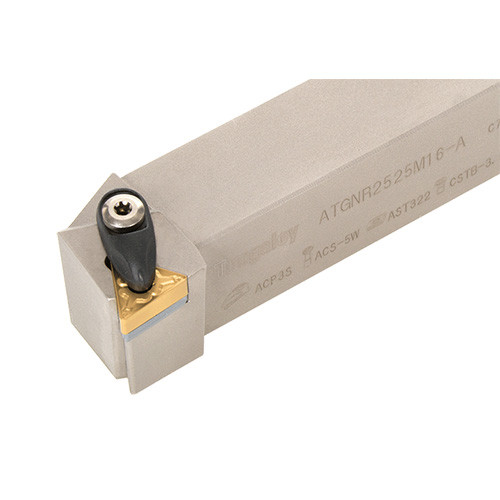

| Family Description | Double-clamp toolholder with 91deg approach angle, for negative triangle inserts | FamilyName | ATGNR/L-TUN6852823 -M |
| Remarks | Torque:Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.689
Name
General Indexable Turning Tools
FamilyName
ATGNR/L-TUN6852823 -M
BrandName
Tungaloy
