STGCR082

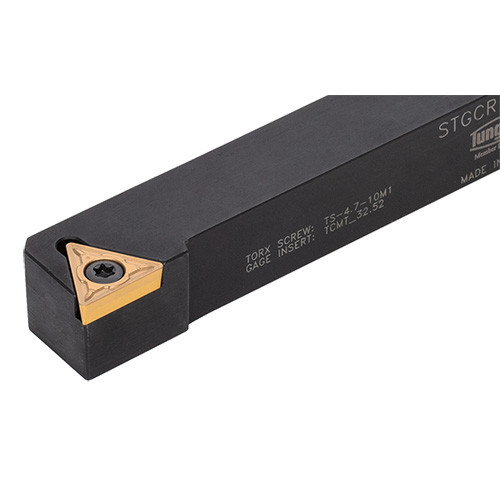

Screw-on toolholder with 91 deg approach angle for positive triangle insert

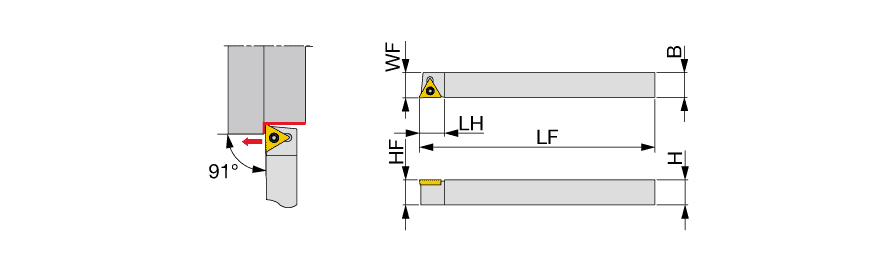

| Shank Height (H) | 1/2″ | Application | | For Triangular insert | |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Functional Length (LF) | 3-1/2″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 5/8″ | Measurement Type | Inch |
| Functional Width (WF) | 5/8″ | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw-on toolholder with 91 deg approach angle for positive triangle insert | FamilyName | STGCR/L |
| Remarks | These products are for the North American Region only. | BrandName | Tungaloy |
| COO | USA |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
STGCR/L
BrandName
Tungaloy
