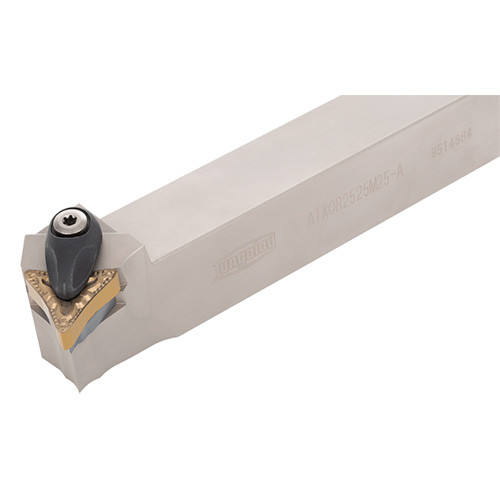

ATXOR2525M25-A
Double-clamp toolholder with 95 and 117.5 deg approach angle for negative 80 and 35 deg triangular inserts

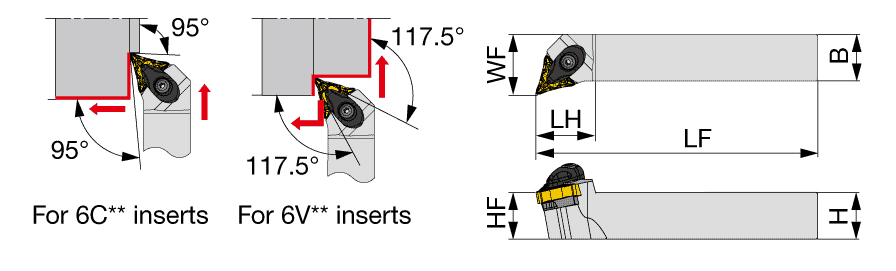

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | 6C-TOMG250608M-TM |
| Shank Width (B) | 25 mm | Application | | For Triangular insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 32 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Double-clamp toolholder with 95 and 117.5 deg approach angle for negative 80 and 35 deg triangular inserts | FamilyName | ATXOR/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
ATXOR/L
BrandName
Tungaloy
