| Shank Height (H) | 19 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 19 mm | Master Insert Identification (MIID) | CPMT120408 |
| Overall Length (OAL) | 95 mm | Application | | Boring Bars | |
| Functional Length (LF) | 95 mm | Body Material | Steel |
| Head Length (LH) | 21 mm | Tool Type | Adapter Turning Tools |
| Functional Width (WF) | 12.7 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 72 mm | Unit | M |
Product Features
| Family Description | 30 deg approarch angle with square shank | FamilyName | TBS3 |

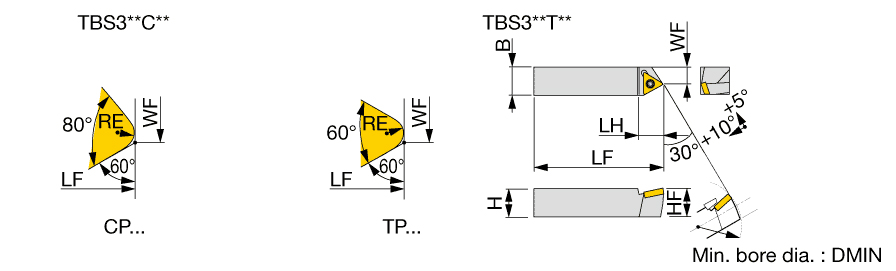

| Remarks | Figures shown above are of 13 mm or smaller square shanks used for normal direction of rotation. For the tools used for reverse direction of rotation, add H in the end of the designation. (Example: TBS308T08H) Use left hand inserts (L) for normal direction of rotation, and right hand inserts (R) for reverse direction of rotation. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2810
Name
General Indexable Turning Tools
FamilyName
TBS3
BrandName
Tungaloy
