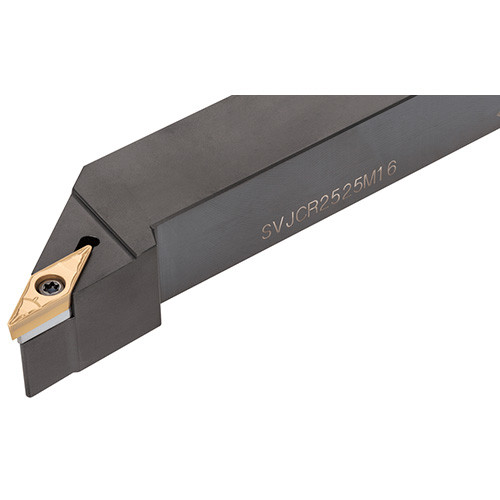

SVJCR2525M16

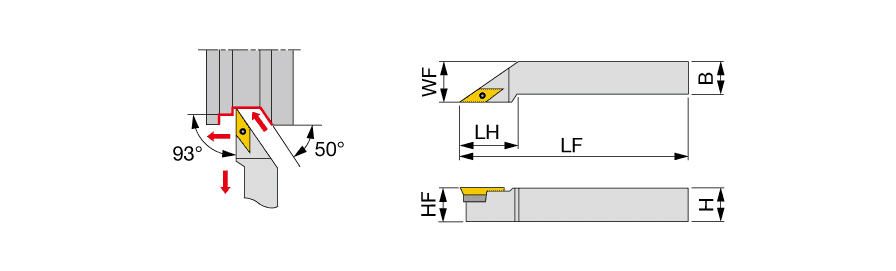

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | VCMT160408 |
| Shank Width (B) | 25 mm | Application | | For 35deg Rhombic insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 40 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw-on clamp toolholder with 93deg approach angle, for positive 35deg rhombic inserts | FamilyName | SVJCR/L-TUN6807403 -M |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
1.526
Name
General Indexable Turning Tools
FamilyName
SVJCR/L-TUN6807403 -M
BrandName
Tungaloy
