PDJNL2020K11

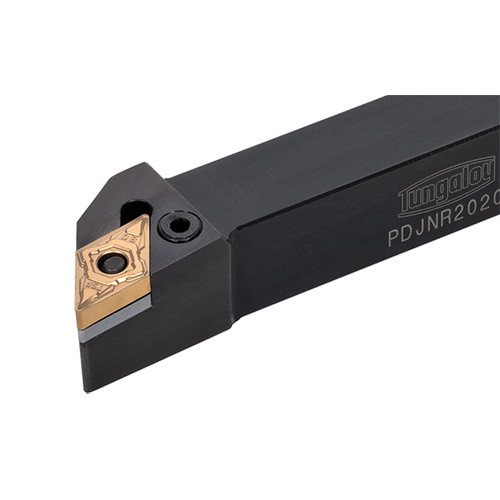

Lever lock type toolholder with 93 deg approach angle, for negative 55 deg rhombic inserts

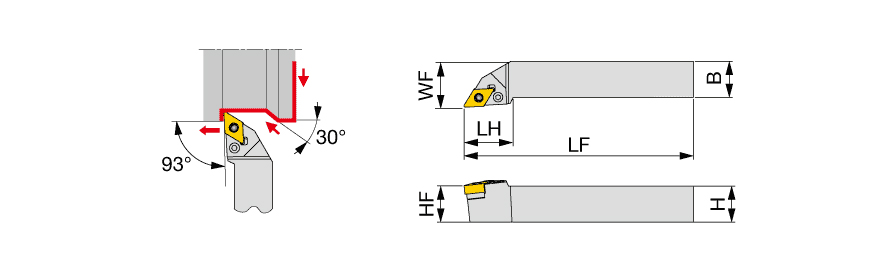

| Shank Height (H) | 20 mm | Master Insert Identification (MIID) | DNMG110408 |
| Shank Width (B) | 20 mm | Application | | For 55deg Rhombic insert | |
| Overall Length (OAL) | 125 mm | Body Material | Steel |
| Functional Length (LF) | 125 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 27 mm | Measurement Type | Metric |
| Functional Width (WF) | 25 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Lever lock type toolholder with 93 deg approach angle, for negative 55 deg rhombic inserts | FamilyName | PDJNR/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.3780
Name
General Indexable Turning Tools
FamilyName
PDJNR/L
BrandName
Tungaloy
