PCBNR2525
Lever lock type toolholder with 75deg approach angle, for negative 80 deg rhombic inserts

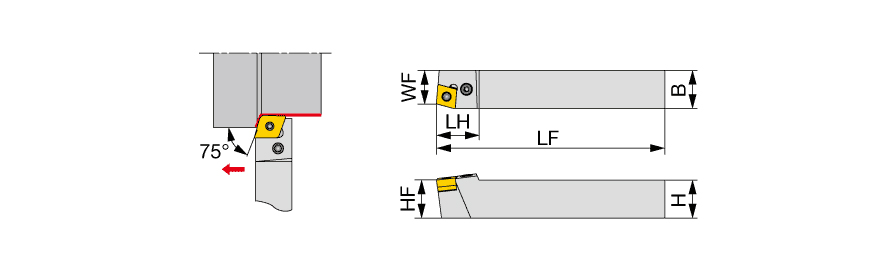

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | CNMG120408 |
| Shank Width (B) | 25 mm | Application | | For 80deg Rhombic insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 28 mm | Measurement Type | Metric |
| Functional Width (WF) | 22 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Lever lock type toolholder with 75deg approach angle, for negative 80 deg rhombic inserts | FamilyName | PCBNR/L |
| Remarks | 100 deg corners are used. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.7380
Name
General Indexable Turning Tools
FamilyName
PCBNR/L
BrandName
Tungaloy
