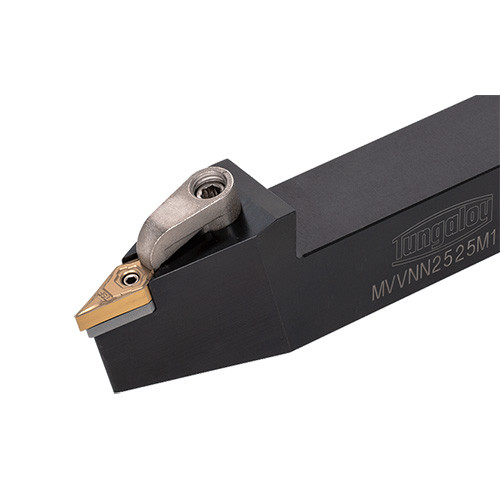

MVVNN2020K16
Multi-clamp toolholder with 72.5deg approach angle, for negative 35deg, 25deg rhombic inserts

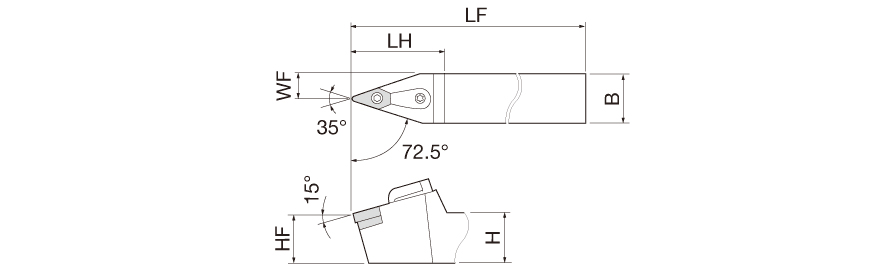

| Shank Height (H) | 20 mm | Master Insert Identification (MIID) | VNMG160408 |
| Shank Width (B) | 20 mm | Application | | For 35deg Rhombic insert | |
| Overall Length (OAL) | 125 mm | Body Material | Steel |
| Functional Length (LF) | 125 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 48 mm | Measurement Type | Metric |
| Functional Width (WF) | 10 mm | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Multi-clamp toolholder with 72.5deg approach angle, for negative 35deg, 25deg rhombic inserts | FamilyName | MVVNN |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.4140
Name
General Indexable Turning Tools
FamilyName
MVVNN
BrandName
Tungaloy
