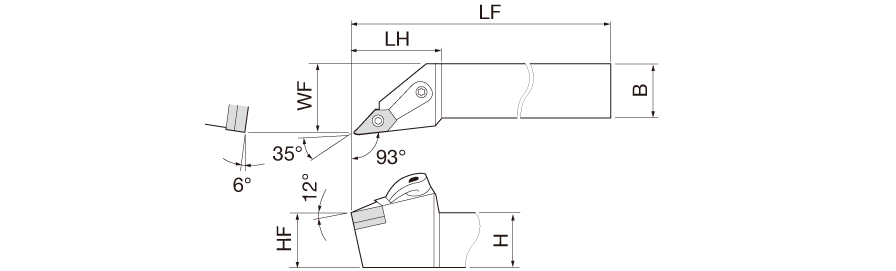

| Shank Height (H) | 32 mm | Master Insert Identification (MIID) | VNMG160408 |
| Shank Width (B) | 32 mm | Application | | For 35deg Rhombic insert | |
| Overall Length (OAL) | 170 mm | Body Material | Steel |
| Functional Length (LF) | 170 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 42 mm | Measurement Type | Metric |
| Functional Width (WF) | 40 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |

Product Features

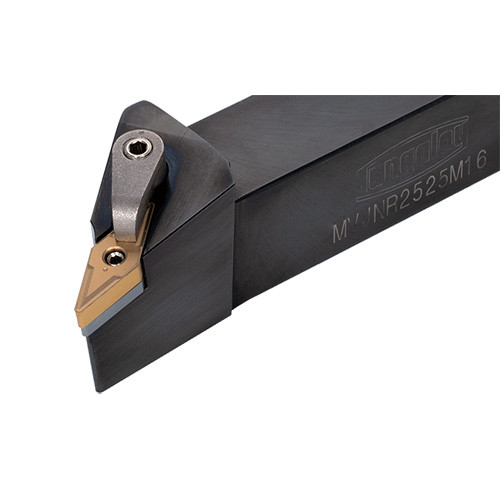

| Family Description | Multi-clamp toolholder with 93deg approach angle, for negative 35deg, 25deg rhombic inserts | FamilyName | MVJNR/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
1.2810
Name
General Indexable Turning Tools
FamilyName
MVJNR/L
BrandName
Tungaloy
