CTTPL16CA

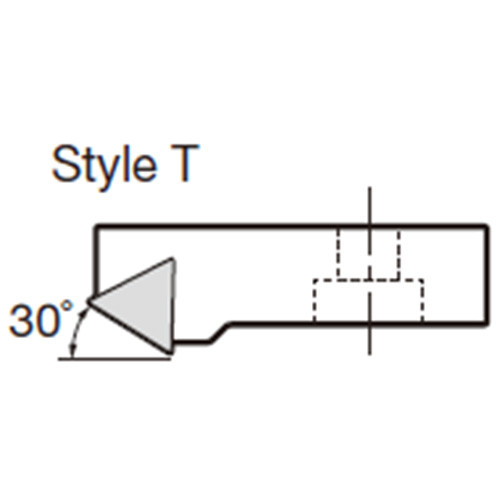

Clamp on cartridge with 30deg approach angle for 11deg clearance triangle insert

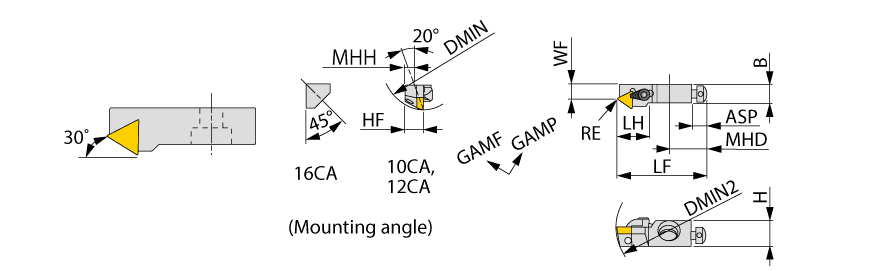

| Shank Height (H) | 16 mm | Master Insert Identification (MIID) | TPGN160308 |
| Shank Width (B) | 17 mm | Application | | Cartridges | |
| Overall Length (OAL) | 63 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 63 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 23 mm | Body Material | Steel |
| Functional Width (WF) | 15 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 55 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Product Features
| Family Description | Clamp on cartridge with 30deg approach angle for 11deg clearance triangle insert | FamilyName | CTTP-CA |
| Remarks | The left hand insert is used for the right hand cartridge and right hand insert is used for left hand cartridge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.1400
Name
General Indexable Turning Tools
FamilyName
CTTP-CA
BrandName
Tungaloy
