CSDPN2020K4
Clamp-on toolholder with 45deg approach angle, for positive square inserts

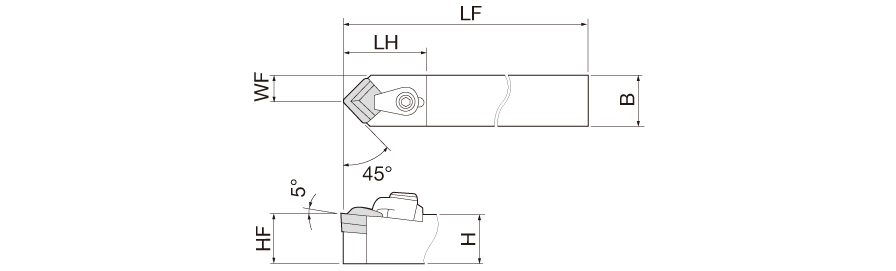

| Shank Height (H) | 20 mm | Master Insert Identification (MIID) | SPMT120308 |
| Shank Width (B) | 20 mm | Application | | For Square insert | |
| Overall Length (OAL) | 125 mm | Body Material | Steel |
| Functional Length (LF) | 125 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 34 mm | Measurement Type | Metric |
| Functional Width (WF) | 10 mm | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Clamp-on toolholder with 45deg approach angle, for positive square inserts | FamilyName | CSDPN |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.3950
Name
General Indexable Turning Tools
FamilyName
CSDPN
BrandName
Tungaloy
