PPXOL206-HD

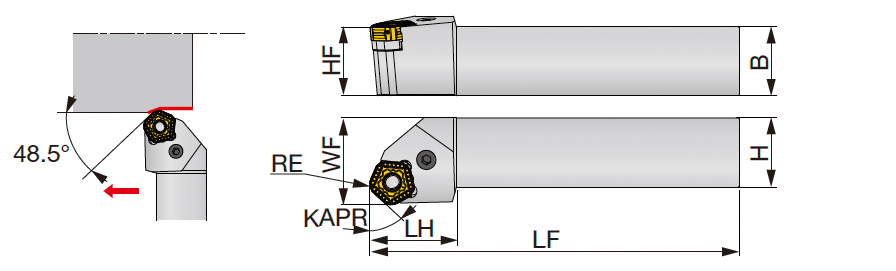

Lever lock type toolholder with 48.5deg approach angle for pentagonal inserts
| Shank Height (H) | 1-1/4″ | Application | | For Heavy Turning | |
| Shank Width (B) | 1-1/4″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Overall Length (OAL) | 7″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Length (LF) | 7″ | Body Material | Steel |
| Head Length (LH) | 1-1/2″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1.51″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Unit | I |
| Master Insert Identification (MIID) | POMG 643 MNW |
Product Features
| Family Description | Lever lock type toolholder with 48.5deg approach angle for pentagonal inserts | FamilyName | PPXOR/L-HD |
| Remarks | Note: Since the corner angle of TurnTenFeed insert is 108 deg, the workpiece corner may require additional post process to remove stock to achieve a right angle. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
PPXOR/L-HD
BrandName
Tungaloy
