| Shank Height (H) | 12 mm | Master Insert Identification (MIID) | DCGT11T302 |
| Shank Width (B) | 12 mm | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Overall Length (OAL) | 120 mm | Body Material | Steel |
| Functional Length (LF) | 120 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 19 mm | Measurement Type | Metric |
| Functional Width (WF) | 0 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features

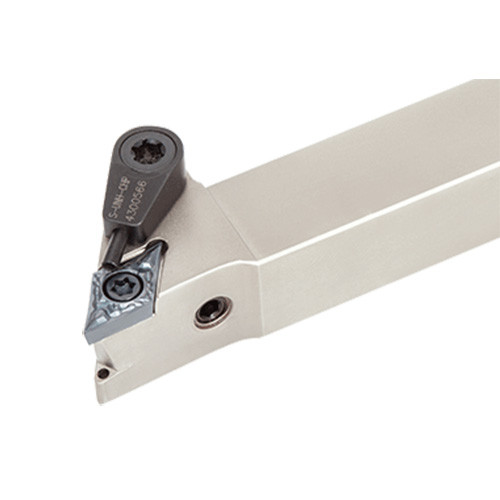

| Family Description | No-offset Screw-on toolholder for positive 55 deg rhombic inserts, with high pressure coolant channels. Compatible to the direct internal coolant supply system without the use of external coolant hose. | FamilyName | JSDJ2CR/L-H/X-CHP |
| Remarks | Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.1630
Name
General Indexable Turning Tools
FamilyName
JSDJ2CR/L-H/X-CHP
BrandName
Tungaloy
