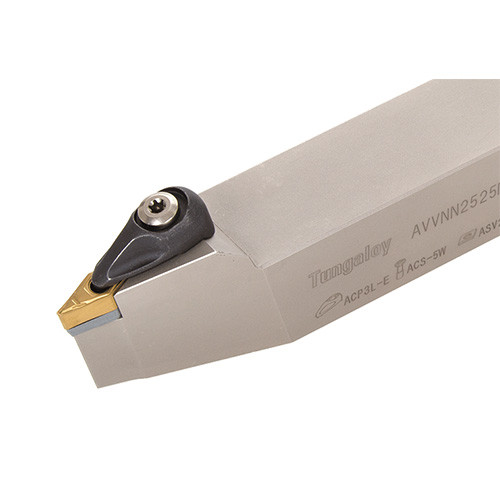

AVVNN2525M1204-A
Double-clamp toolholders with 72.5deg approach angle for negative 35deg rhombic inserts VN**1204...

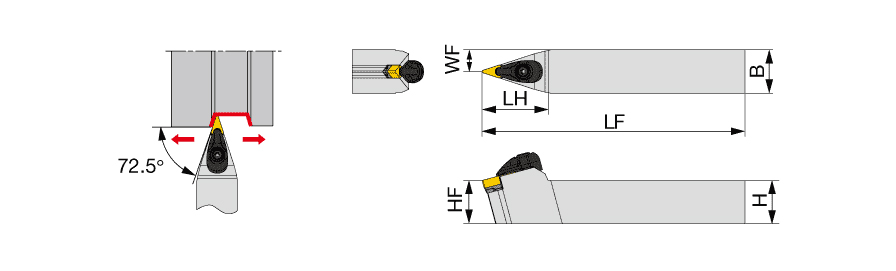

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | VNMG120408E |
| Shank Width (B) | 25 mm | Application | | For 35deg Rhombic insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 38 mm | Measurement Type | Metric |
| Functional Width (WF) | 12.5 mm | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Double-clamp toolholders with 72.5deg approach angle for negative 35deg rhombic inserts VN**1204... | FamilyName | AVVNN-Eco |
| Remarks | Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.6840
Name
General Indexable Turning Tools
FamilyName
AVVNN-Eco
BrandName
Tungaloy
