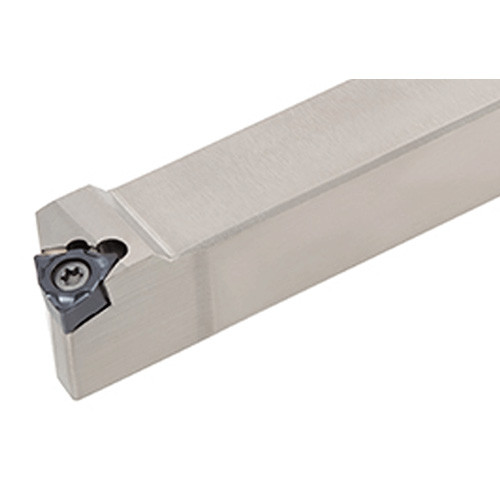

JSWL2XR102
No-offset Screw-on toolholder with 95deg approaach angle, for WXG* inserts

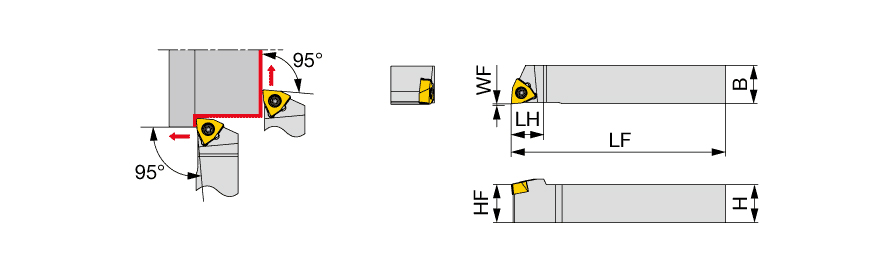

| Shank Height (H) | 5/8″ | Master Insert Identification (MIID) | WXGU220.5L |
| Shank Width (B) | 5/8″ | Application | | For 80deg Trigon insert | For Miniature machining | |
| Overall Length (OAL) | 4-3/4″ | Body Material | Steel |
| Functional Length (LF) | 4-3/4″ | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING AND FACING |
| Head Length (LH) | 1/2″ | Measurement Type | Inch |
| Functional Width (WF) | 0″ | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | No-offset Screw-on toolholder with 95deg approaach angle, for WXG* inserts | FamilyName | JSWL2XR/L |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.5556
Name
General Indexable Turning Tools
FamilyName
JSWL2XR/L
BrandName
Tungaloy
