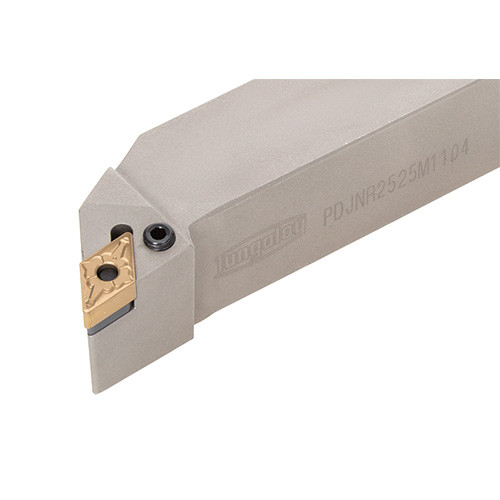

PDJNR1233
Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts DN**33...

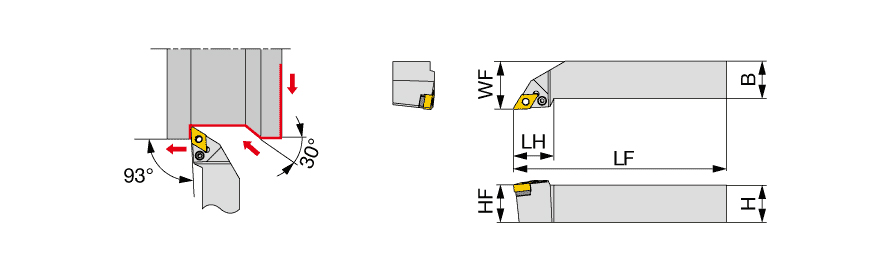

| Shank Height (H) | 3/4″ | Master Insert Identification (MIID) | DNMG332 |
| Shank Width (B) | 3/4″ | Application | | For 55deg Rhombic insert | |
| Overall Length (OAL) | 4-1/2″ | Body Material | Steel |
| Functional Length (LF) | 4-1/2″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 1-1/8″ | Measurement Type | Inch |
| Functional Width (WF) | 1″ | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts DN**33... | FamilyName | PDJNR/L-Eco |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.7121
Name
General Indexable Turning Tools
FamilyName
PDJNR/L-Eco
BrandName
Tungaloy
