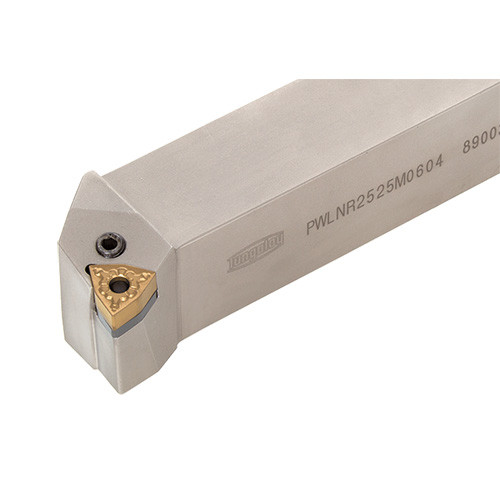

PWLNR2525M0604

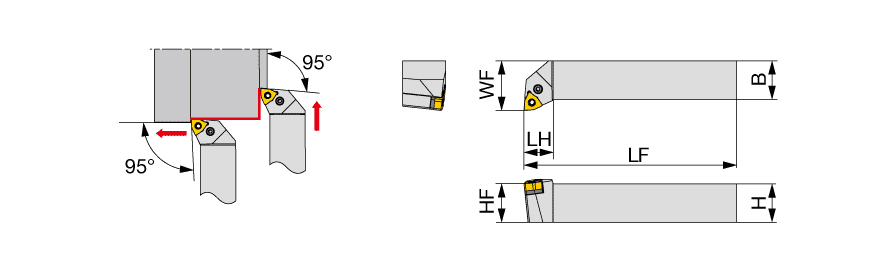

Lever lock type toolholder with 95deg approach angle, for negative 80deg trigon inserts WN**0604...
| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | WNMG060408 |
| Shank Width (B) | 25 mm | Application | | For 80deg Trigon insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 19 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Lever lock type toolholder with 95deg approach angle, for negative 80deg trigon inserts WN**0604... | FamilyName | PWLNR/L-Eco |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.7520
Name
General Indexable Turning Tools
FamilyName
PWLNR/L-Eco
BrandName
Tungaloy
