JSVJ2BL102

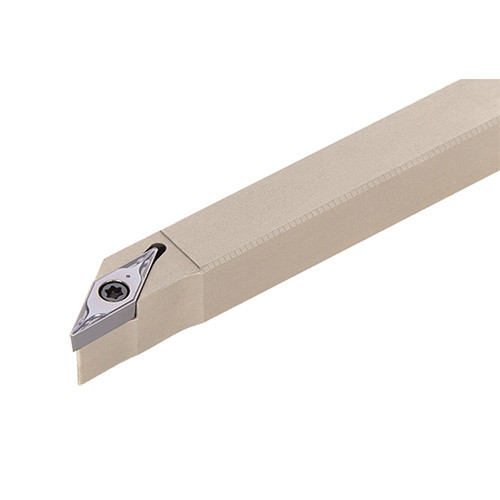

No-offset Screw-on toolholder with 93deg approach angle, for positive 35deg rhombic inserts

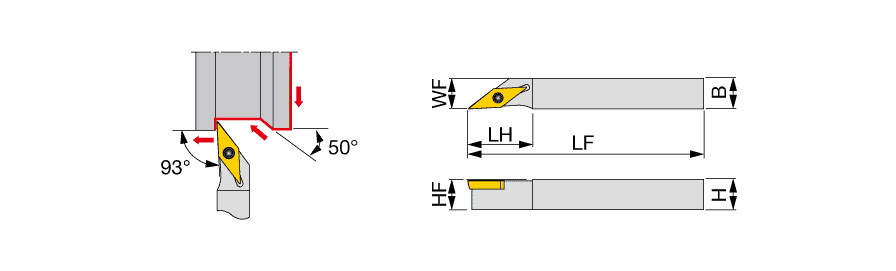

| Shank Height (H) | 5/8″ | Master Insert Identification (MIID) | VBGT220.5 |
| Shank Width (B) | 5/8″ | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Overall Length (OAL) | 5″ | Body Material | Steel |
| Functional Length (LF) | 5″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 0.813″ | Measurement Type | Inch |
| Functional Width (WF) | 5/8″ | Unit | I |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | No-offset Screw-on toolholder with 93deg approach angle, for positive 35deg rhombic inserts | FamilyName | JSVJ2BR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
JSVJ2BR/L
BrandName
Tungaloy
