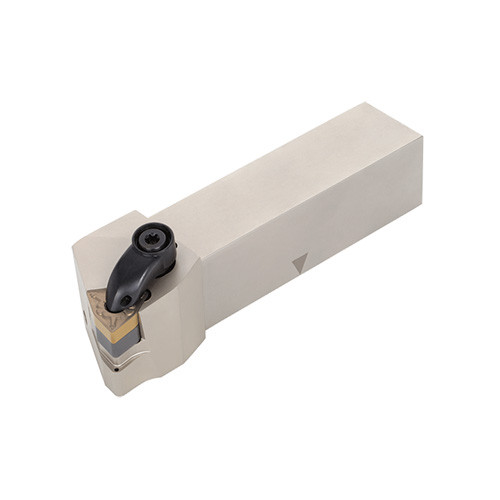

AWLNL2525X-08-CHP-MC
Double-clamp toolholder with 95 deg approach angle, for negative trigon inserts, with high pressure coolant channels. High-pressure coolant capability with tube and direct connection.
| Shank Height (H) | 25 mm | Application | | For 80deg Trigon insert | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Overall Length (OAL) | 121 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Functional Length (LF) | 121 mm | Body Material | Steel |
| Head Length (LH) | 36 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | WNMG080408 |
Product Features
| Family Description | Double-clamp toolholder with 95 deg approach angle, for negative trigon inserts, with high pressure coolant channels. High-pressure coolant capability with tube and direct connection. | FamilyName | AWLNR/L-X-CHP-MC |
| Remarks | Torque: Recommended torque (Nm) for clamping. Applicable for 14 MPa pressure coolant. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
AWLNR/L-X-CHP-MC
BrandName
Tungaloy
