S32-DDUNL11T-H

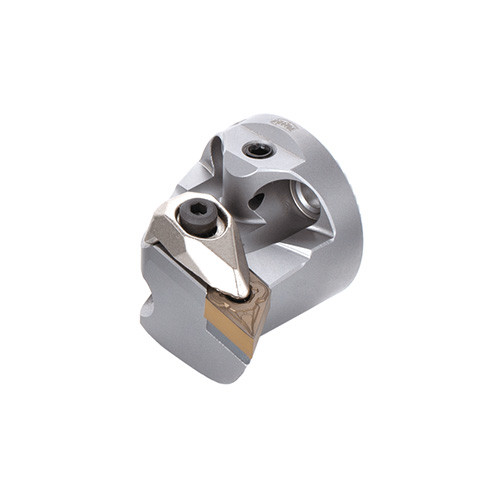

Double-clamp exchangeable boring head for negative 55 deg rhombic inserts

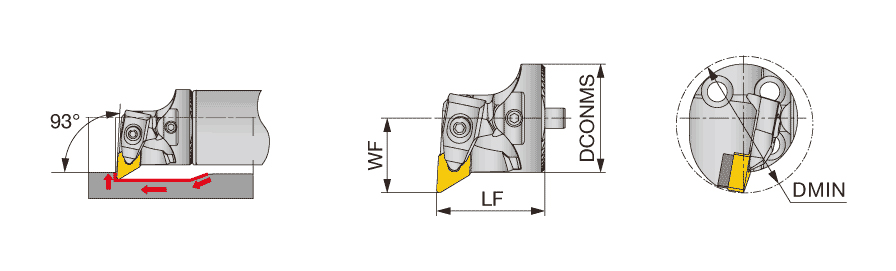

| Functional Length (LF) | 32 mm | Application | | For 55deg Rhombic insert | |
| Functional Width (WF) | 22 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 40 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | DNMG110408 |
Product Features
| Family Description | Double-clamp exchangeable boring head for negative 55 deg rhombic inserts | FamilyName | S-DDUNR/L-H |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (DDUNL... type), and the left hand insert (L) is used for the right hand toolholders (DDUNR... type). Optional parts for S40 DDUN*15T H: RDT443 (Shim for DN**1504...) DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. | BrandName | Tungaloy |
| COO | CHINA |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
S-DDUNR/L-H
BrandName
Tungaloy
