S16-SDUCR07-H

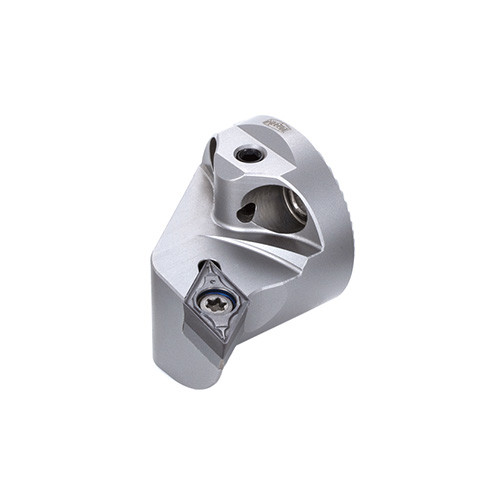

Screw-on exchangeable boring head for Posi 55 deg rhombic inserts with 7 deg clearance

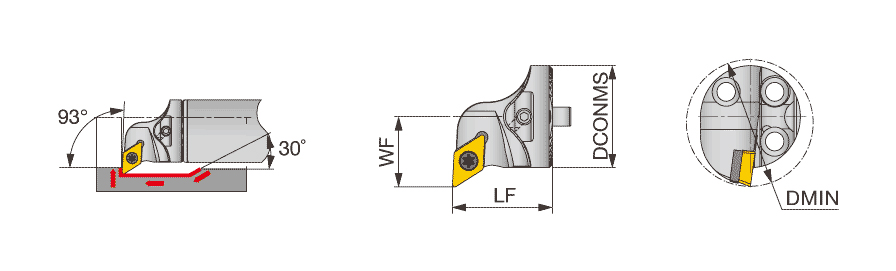

| Functional Length (LF) | 20 mm | Application | | For 55deg Rhombic insert | |
| Functional Width (WF) | 11 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 20 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | DCMT070204 |
Product Features
| Family Description | Screw-on exchangeable boring head for Posi 55 deg rhombic inserts with 7 deg clearance | FamilyName | S-SDUCR/L-H |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SDUCL... type), and the left hand insert (L) is used for the right hand toolholders (SDUCR... type). DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. | BrandName | Tungaloy |
| COO | CHINA |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
S-SDUCR/L-H
BrandName
Tungaloy
