EPA06R100U0100W04N

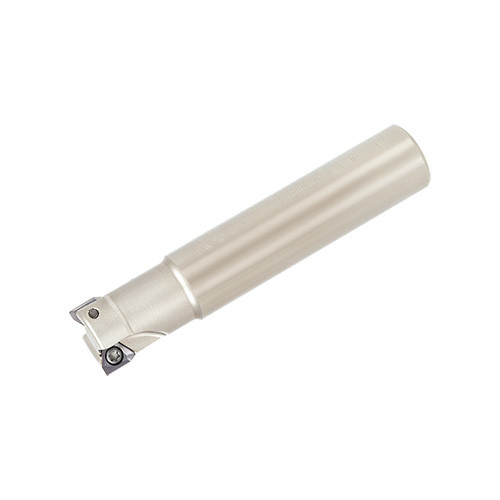

High precision shoulder square endmills with triangular inserts

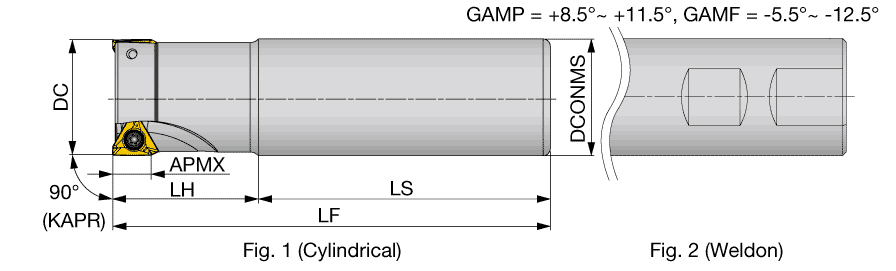

| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 1″ | Functional Length (LF) | 3.78″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.236″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 3.78″ | Measurement Type | Inch |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 2.28″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
| Master Insert Identification (MIID) | TOMT060304PDER-MJ | Unit | I |
Product Features
| Family Description | High precision shoulder square endmills with triangular inserts | FamilyName | EPA06 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.8951
Name
Indexable End Mills
FamilyName
EPA06
BrandName
Tungaloy
