EPA06R016M16.0-02L
High precision shoulder square endmills with triangular inserts

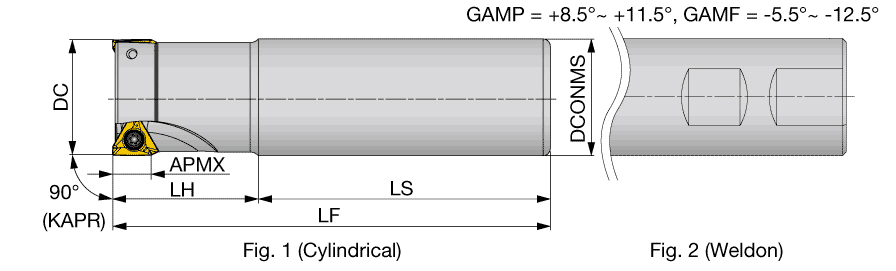

| Cutting Diameter (DC/DCX) | 16 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 16 mm | Functional Length (LF) | 145 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 6 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 145 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 105 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 16 mm |
| Master Insert Identification (MIID) | TOMT060304PDER-MJ | Unit | M |
Product Features
| Family Description | High precision shoulder square endmills with triangular inserts | FamilyName | EPA06 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2490
Name
Indexable End Mills
FamilyName
EPA06
BrandName
Tungaloy
