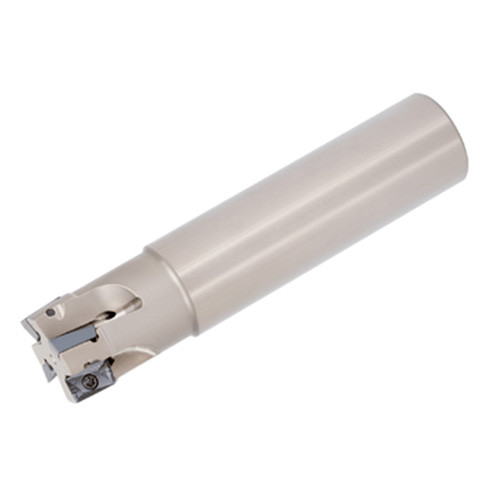

EPO11R050M42.0-03L
High precision shoulder square endmills with ASMT/ASGT11 inserts

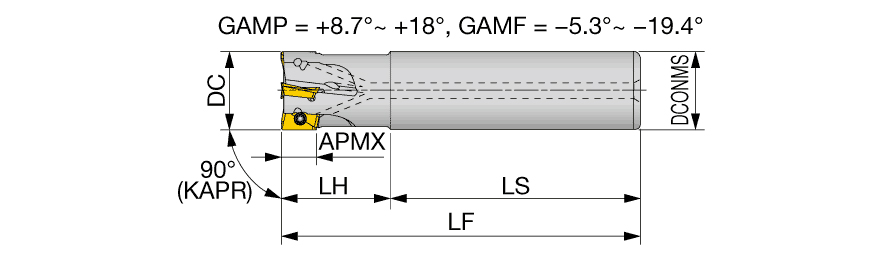

| Cutting Diameter (DC/DCX) | 50 mm | Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 50 mm | Functional Length (LF) | 360 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 10.6 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 360 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 310 mm |
| Connection Diameter Machine Side (DCONMS) | 42 mm | Cutting Diameter Maximum (DCX) | 50 mm |
| Master Insert Identification (MIID) | ASMT11T304PDPR-MJ | Unit | M |
Product Features
| Family Description | High precision shoulder square endmills with ASMT/ASGT11 inserts | FamilyName | EPO11 |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
3.9400
Name
Indexable End Mills
FamilyName
EPO11
BrandName
Tungaloy
Related Documentation

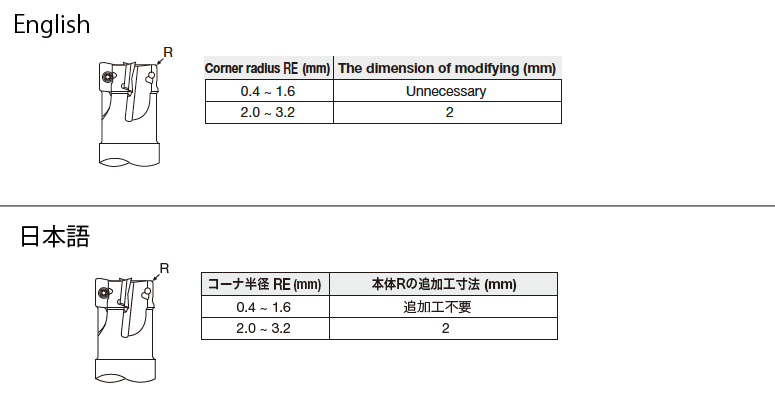

When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
